Sash Window Replacement

Sash Window Replacement, We offer a full range of made-to-measure timber windows and a comprehensive selection of external single, double and bi-fold door sets. We also offer a wide wk3variety of window and door combinations including arches, raked heads, round and oval windows, screens and bay configurations.

Glasswood Windows is a Somerset based installer of high performance timber windows and timber door-sets supplying nationally. All of our products are made specifically tailored to our customers’ requirements, direct to the trade and public.

Our products increase perceived value, improve margins and have the advantage of being built from timber, which has one of the lowest carbon footprints of any building material.

Timber is an excellent versatile material providing a wide range of design styles and configurations whilst achieving a naturally beautiful and durable finish. We use a range of engineered hardwoods and softwoods to provide you with the highest quality and suitability for each individual project.

Timber windows, timber doors – internal and external single and double door sets including front doors, french doors, bi-folding and sliding doors.

Timber casement windows – mock-sash, top swing, fully reversible, tilt and turn (open in), flush and over-rebated casement windows, timber sliding sash windows (such as vertical sliding sash windows using either spiral balances or traditional weights and pulleys).

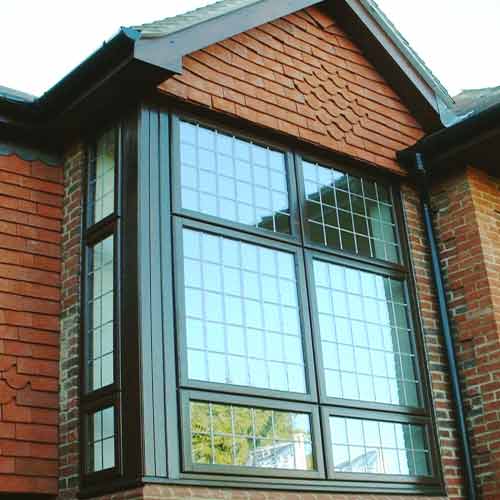

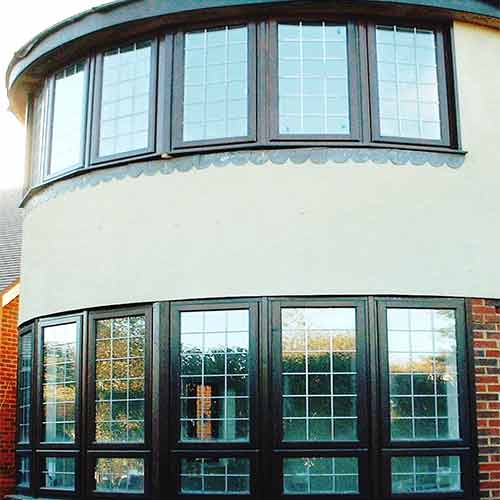

Warwick Range

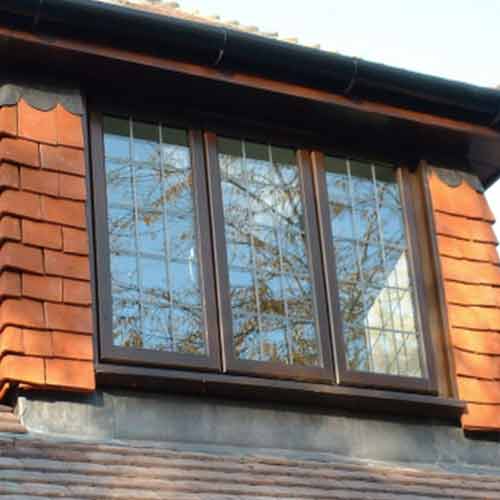

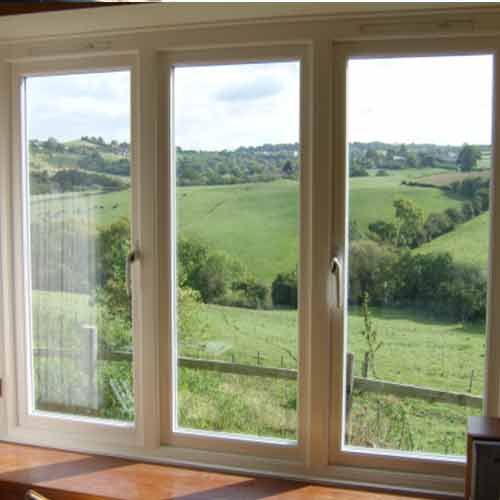

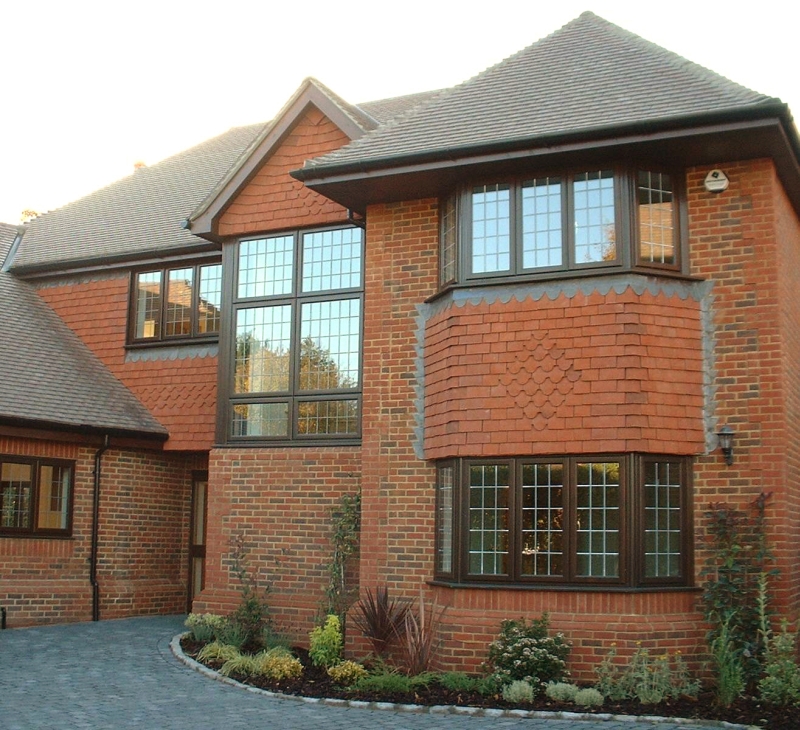

warwick-rangeThe Warwick range, Arden Windows ‘flagship’ over-rebated storm-proof casement window system, represents cutting edge design combined with the latest energy efficiency and durability advantages. The range incorporates:

Full BS7950 / BS6375 Accreditation

Double weatherseal for higher performance

Ability to incorporate up to 28mm double glazed units for better acoustic benefits

U-values lower than 1.5W/M2k achievable (where specified)

70mm Section

Water based environmentally friendly micro-porous paints and boron preservation

Fully Reversible Summary Specification

The Warwick window range is made-to-measure according to your specifications. For ease, the standard features of the range are provided below for quick reference only but many of the options can be changed. Please contact us for more information.

Frame TimberLaminated Engineered European Redwood or Hardwoods

Sash TimberLaminated Engineered European Redwood or Hardwoods

Glazing28mm double glazed units 4mm clear outer panel, 4 mm clear inner with low e to one pane face to comply with Part L of the Building Regulations.Triple glazing options available

LockingMinimum 2 point reverse action Espagnolette locking system with white, black, anodised silver or polished chrome  key locking handle (unless non-locking is required), full shoot bolt and low level handle options available.

PreservationAll softwood windows are supplied with factory applied Boron Preservative treatment.  This provides a 35 year guarantee against rot and fungal attack assuming maintenance and care advice is followed. Since it is also water based it is more environmentally friendly than traditional VOC based treatments.

Paint FinishFactory Finished (one base coat and Two white top coat). RAL colours available at additional cost (request our standard colour range).

Ventilation1nr or 2nr white Trickle Ventilation per window. Any frame below 915mm wide can have a maximum 1nr trickle vent. Any frame 915mm and above can have either 1nr or 2nr trickle vents. In areas of mobility cord control vents are available.


DraughtproofingWhite draughtproof as standard. All windows are supplied as standard with white draughtproofing to painted colours and brown draughtproofing to stained windows unless a specific colour (white or brown) is specified.

ToleranceWe will manufacture our products to your specified order size. If required, it is recommended that customers ensure a fitting tolerance is specified at time of order.

Manufacturing StandardsWarwick transom drops for fan lights will be manufactured to a set drop of 400mm unless otherwise specified. All mullions will be positioned centrally.

HandingIn instances where windows or doors are not symmetrical we can supply them with opposite handing.

Cavity ClosersSupplied pre-formed (P.O.A.)

Fully Reversible range technical section profile drawings

If you are an Architect or Technical Planner, we can supply either .pdf or .dxf files of our window section profile as technical drawings. Only .pdf files are available from our website for all our window styles, which can be downloaded from the relevant product pages. Section Profile drawings in other formats are available on request*.

 FR HS Drawing1      Internally Beaded Horizontal Section Profile
 FR VS Drawing2     Internally Beaded Vertical Section Profile
 Profile Options      Standard Profile Options


2D CAD ELEVATIONS AVAILABLE
If you would like us to produce ELEVATIONS* of our windows as working CAD drawings, we can do this to your supplied dimensions for use in feasbility drawings or final client presentations. Please call us on 08707 890160 for further details or use our contact us page stating which product range sections you require and preferred file formats.

*Limited offer, restrictions apply

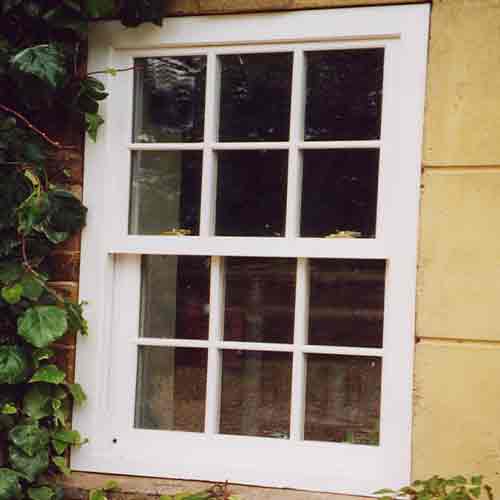

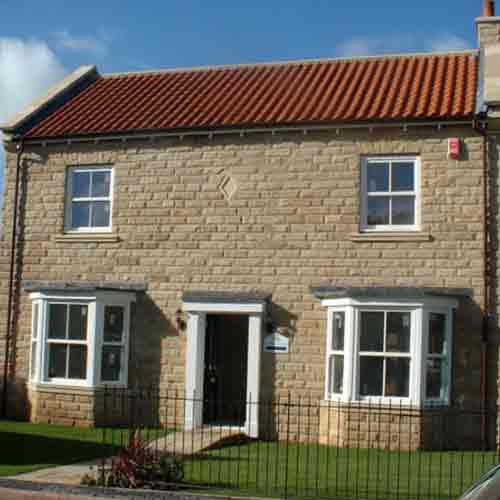

Kinward vertical sliding sash range

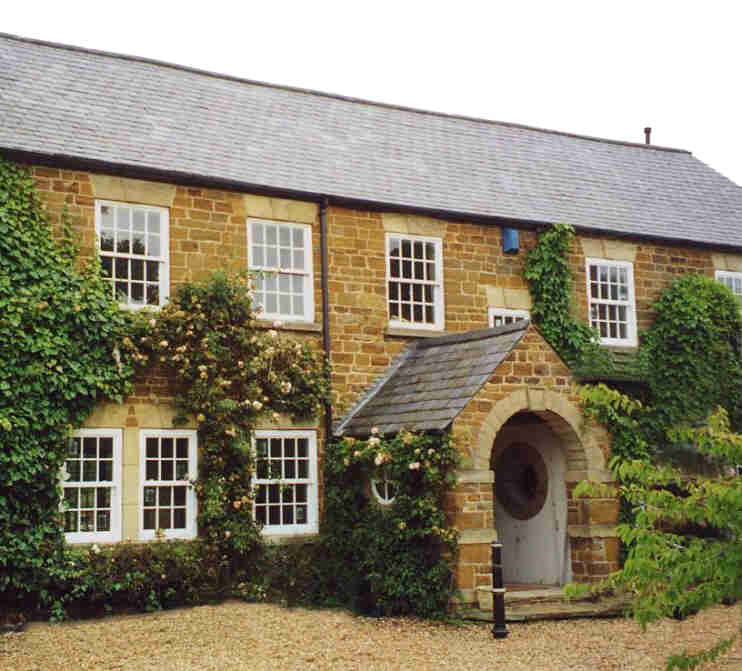

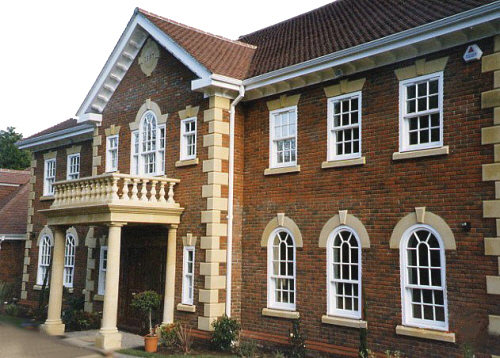

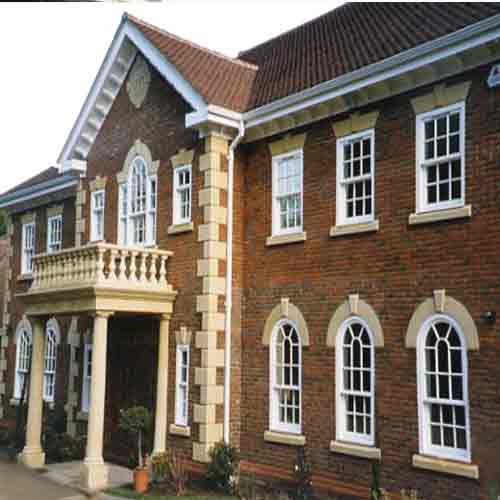

kindFor more traditional new build projects and replacement windows for older properties, the Kinward sliding sash range offers many advantages:

Great style for conservation areas – Traditional Weight and Pulley product available

slim meeting rails and plant on bar options with a range of profiles

Sash restrictions as an option – Concealed glazing method

Spiral balances giving slimmer sections – Double weather seal for higher performance

BS 7950 tested and Secured By Design Certificated windows – Laminated and Engineered Softwood and hardwoods available

Sash horns to top, bottom or both sashes – Tilt in sashes for ease of cleaning as standard on some products

Water based environmentally friendly micro-porous paints and boron preservation

Kinward Summary

The Kinward vertical sliding sash window range is made-to-measure according to your specifications. For ease, the standard features of the range are provided below for quick reference only but many of the options can be changed. Please contact us for more information.

Frame TimberEuropean Unsorted Redwood

Sash TimberEngineered Laminated European Redwood

Glazing28mm double glazed unit as standard 4mm clear outer panel, 4 mm clear inner with Planitherm to one pane face to comply with Part L of the Building Regulations.Triple glazed units available.

Lockingone or two locking fitch catches per window. Traditional and modern fitch catch options available.

PreservationAll softwood windows are supplied with factory applied Boron Preservative treatment.  This provides a 35 year guarantee against rot and fungal attack assuming maintenance and care advice is followed. Since it is also water based it is more environmentally friendly than traditional VOC based treatments.

Paint FinishFactory Finished (one base coat and two white top coat). RAL colours available at additional cost (request our standard colour range).

Ventilation1nr or 2nr white Trickle Ventilation per window. Any frame below 900mm wide can have a maximum 1nr trickle vent. Any frame 900mm and above can have either 1nr or 2nr trickle vents. In areas of mobility cord control vents are available.

DraughtproofingWhite draughtproof as standard. All windows are supplied as standard with white draughtproofing to painted colours and brown draughtproofing to stained windows unless a specific colour (white or brown) is specified.

ToleranceWe will manufacture our products to your specified order size. If required, it is recommended that customers ensure a fitting tolerance is specified at time of order.

Manufacturing StandardsAs standard all Kinward spiral balance sliding sashes will include the tilt in facility (except where bottom sash horns required).

  Linings Extended frame linings are available upon request.
Cavity ClosersSupplied pre-formed (P.O.A.)

Kinward range technical section profile drawings

If you are an Architect or Technical Planner, we can supply either .pdf or .dxf files of our window section profile as technical drawings. Only .pdf files are available from our website for all our window styles, which can be downloaded from the relevant product pages. Section Profile drawings in other formats are available on request*.

Kinward Drawing

 Kinward Drawing1      Kinward vertical sliding sash drawing vertical section
 Kinward Drawing2      Kinward vertical sliding sash drawing Horizontal section
 Profile Options      Profile Options (Sash inner profile only)


2D CAD ELEVATIONS AVAILABLE
If you would like us to produce ELEVATIONS* of our windows as working CAD drawings, we can do this to your supplied dimensions for use in feasbility drawings or final client presentations. Please call us on 08707 890160 for further details or use our contact us page stating which product range sections you require and preferred file formats.

*Limited offer, restrictions apply

The Stoneleigh mock-sash casement window range

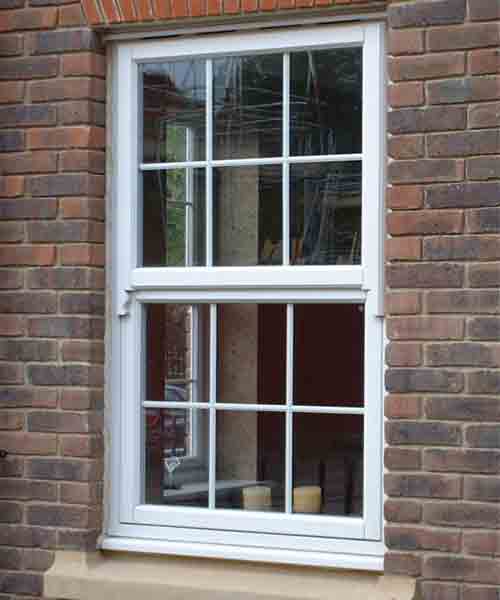

Sash-Window-Replacement-TauntonThe Stoneleigh mock-sash casement window offers all the features of a modern high performance timber window.

Sashes open as per normal casement windows (top or side hung) but when closed, suggest the look of more traditional sliding sash windows. The range incorporates:

Double gasket unit for storm proofing

Vented and drained frame and sash with double silicone seal

Internally beaded option

Concealed tricklevents

Concealed glazing pins

Fire egress facility for third floors

See the Stoneleigh Gallery for images of the Stoneleigh range in situ.

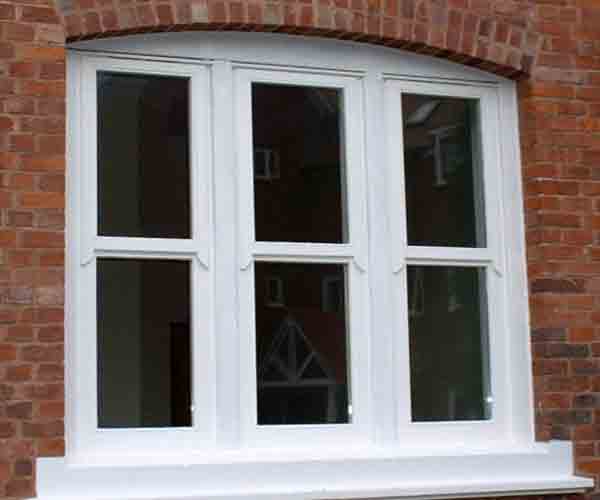

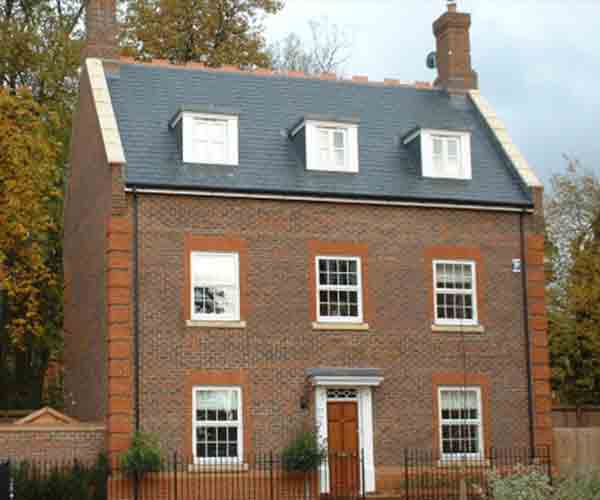

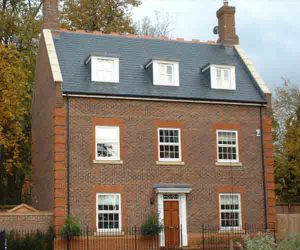

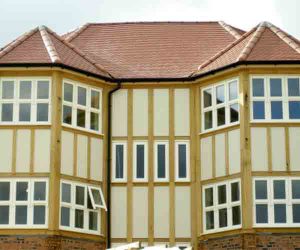

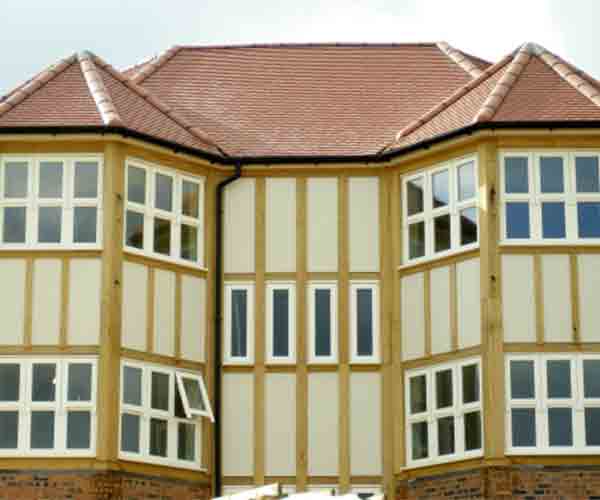

Sash-Window-Replacement-DevonSash-Window-Replacement-DorsetSash-Window-Replacement-Somerset

The Stoneleigh window range is made-to-measure according to your specifications. For ease, the standard features of the range are provided below for quick reference only but many of the options can be changed. Please contact us for more information.

Frame TimberEuropean Unsorted Redwood

Sash TimberLaminated European Redwood

Glazing4mm clear outer panel, 4 mm clear inner with Planitherm to one pane face to comply with Part L of the Building Regulations.

LockingMinimum 2 point Espagnolette locking system with white key locking handle (unless non-locking is required), full shoot bolt optional.

PreservationAll softwood windows are supplied with factory applied Boron Preservative treatment.  This provides a 30 year guarantee against rot and fungal attack assuming maintenance and care advice is followed. Since it is also water based it is more environmentally friendly than traditional VOC based treatments.

Paint FinishFactory Semi Finished (one base coat and one white top coat). Final top coat and other colours available at additional cost (request our standard colour range).

Ventilation1nr or 2nr white Trickle Ventilation per window. Any frame below 900mm wide can have a maximum 1nr trickle vent. Any frame 900mm and above can have either 1nr or 2nr trickle vents. In areas of mobility cord control vents are available.
  Note – No trickle vents for door products.

DraughtproofingWhite draughtproof as standard. All windows are supplied as standard with white draughtproofing to painted colours and brown draughtproofing to stained windows unless a specific colour (white or brown) is specified.

ToleranceWe will manufacture our products to your specified order size. If required, it is recommended that customers ensure a fitting tolerance is specified at time of order.

Manufacturing StandardsWarwick transom drops for fan lights will be manufactured to a set drop of 355mm unless otherwise specified. All mullions will be positioned centrally.

HandingIn instances where windows or doors are not symmetrical we can supply them with opposite handing.

Cavity ClosersSupplied pre-formed (P.O.A.)

Stoneleigh range technical section profile drawings

If you are an Architect or Technical Planner, we can supply either .pdf or .dxf files of our window section profile as technical drawings. Only .pdf files are available from our website for all our window styles, which can be downloaded from the relevant product pages. Section Profile drawings in other formats are available on request*.

Stoneleigh Drawing

 Stoneleigh Drawing1      Stoneleigh mock sash vertical section drawing
 Stoneleigh Drawing2      Stoneleigh mock sash Horizontal section drawing
 Profile Options      Profile Options


2D CAD ELEVATIONS AVAILABLE
If you would like us to produce ELEVATIONS* of our windows as working CAD drawings, we can do this to your supplied dimensions for use in feasbility drawings or final client presentations. Please call us on 08707 890160 for further details or use our contact us page stating which product range sections you require and preferred file formats.

*Limited offer, restrictions apply
